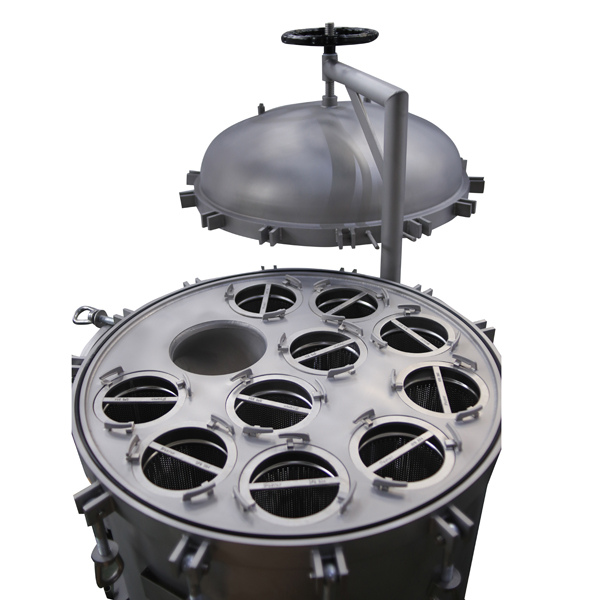

carbon steel Multi Bag Filter Housing Sanitary With 150PSI Working Pressure

  • 1
  • 2

Brand Name : Austin Filter

Model Number : All 4 size

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Sets per day

Delivery Time : 10 working days

Packaging Details : Wooden case or pallet

Material : carbon steel

Application : water filtration industries

Filtration accuracy : 0.5-1500 micron

Package : Wood case

Delivery time : 10 days

Gurantee time : 12-24 month

Contact Now

Sanitary SS 304 Material Multi Bag Water Filter Housing with 150PSI Working Pressure

Bag type filter is a pressure filtration device ,which is mainly consists of filtration cylinder,cylinder cover and fast open structure,stainless steel strengthen filtration bag,etc.when filtrate flows from side entrance of filter shell into the pipe bag,The bag itself is installed inside the enhanced basket ,liquid penetrates bag with required fineness grade that can be provided with qualified filtrate,impurity particles were bag intercept.It is very easy to replace the filtration bags,there is hardly no material to be consumed.

Working principle

The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag. The impurities will be blocked into the filter bag.The filter bag can be reused repeatedly after washing or cleaning. It is easy to replace the filter bags.

The filter is features of no material consumption and low operation cost

Applications

Bag filters are widely used in paint, beer, vegetable oil, pharmaceutical, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration.

Specifications

Model Bag Qty

Filtration area

(m2)

Max Flow(t/h)

Inlet Flange

(mm)

Working pressure
DB-2P2S 2 1 70 DN50

0.5Mpa

DB-3P2S 3 1.5 105 DN80
DB-4P2S 4 2 140 DN100
DB-5P2S 5 2.5 175 DN150
DB-6P2S 6 3 210 DN150
DB-7P2S 7 3.5 245 DN150
DB-8P2S 8 4 280 DN150
DB-10P2S 10 5 350 DN200
DB-12P2S 12 6 420 DN200
DB-14P2SL 14 7 490 DN200
DB-16P2SL 16 8 560 DN250
DB-18P2SL 18 9 630 DN250
DB-20P2SL 20 10 770 DN250

Delivery and package

Package Details:wooden boxes into container Bag filter housing

Delivery Time:Shipped in 15 days

FAQ

  1. Can you produce the bag filter house according to our drawing or samples ?

    Yes, of course we can

  2. Can you accept print our Logo on the valve handle cover ?

    Yes, we can if you need

  3. How about the delivery time ?

    With the standard products, normally delivery time will be 10 days
